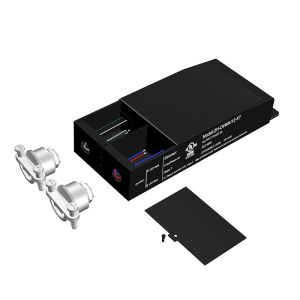

Low Voltage 24V 96W Aluminum shell Triac Dimmable LED Driver

Place of Origin : Guangdong, China

Brand Name : KSPOWER

Certification : UL/ cUL/CE/ TUV-GS/ ROHS/FCC/ Class2

MOQ : 10 pieces

Price : $11-16/pieces

Model Number : ZH-DV96U24-KT

Payment Terms : T/T

Delivery Time : 20 days

Packaging Details : Brown box and Carton

Warranty(Year) : 3-Year / 5-Year

Color : Black, White, Silver, White Black

Current : 4.0A

Lighting solutions service : Lighting and circuitry design

Product Name : low voltage landscape lighting transformer

Output : 24V

Dimming mode : Triac/ Phase-cut, 0-10V, 1-10V, 10V PWM, Resistance Dimming (5 in 1)

Application : LED Lighting

Warranty : 5 Years

Efficiency : ≥ 91%

Material : Aluminium /Iron /Plastic Case

IP Rate : nema 3R,IP65

Contact Now

Low Voltage 24V 96W Aluminum shell Triac Dimmable LED Driver

Product Description:
The triac phase cut led dimmable driver is a 96 wattage 24volt constant voltage dc output dimmable drivers for led strip lights and various LED fixtures installations. The 12v dimmable led driver accepts 120V AC input voltage and use low profile aluminum materials with junction box that included 2 knock-outs to enable easy installation makes the dimmable led driver perfect for outdoor use. This 24 volt dimmable LED Driver is certified UL/cUL 8750 Class 2 safety approvals and provides 8 safety protections.
Features:
． Dimmable with any standard MLV/Incandescent TRIAC (Leading edge) dimmer switch
． Super compact Aluminum cas
． UL/cUL 8750, Class 2
． Nema 3R - Outdoor Use
． Auto-Reset Protection for input/output overvoltage protection, input/output overcurrent protection, over temperature protection, over power protection and short circuit protection

Features:
− Optional AC input voltage :100-120Vac,200-240Vac, 230Vac,100-277VAC − Efficiency up to 91% − Built-in active PFC function − Single channel & constant voltage mode and PWM style output − Protection: OCP, OVP, SCP, OTP − Limited Power Source −ETL, cETL,cUL, RoHS, CE, ENEC, GS, Class P, SAA Approved − Function options: 1. Non-dimmable 2. Triac/Phase-cut Dimmable
3. 4 in 1 dimmable (0-10V,1-10V,PWM,resistance)
4. 5 in 1 dimmable (0-10V,1-10V,TRIAC,PWM,resistance)
− Typical lifetime > 50000 hours −2/3 /5 years warranty − Available with or without integrated Junction Box −Optional :IP20 Nema 3R IP65 IP67 Rated Enclosure for Indoor and Outdoor Use − Wiring Compartments with Knock-Outs for Clean and Easy Installation

Low Voltage 24V 96W Aluminum shell Triac Dimmable LED Driver

Low Voltage 24V 96W Aluminum shell Triac Dimmable LED Driver

Dimming Type Series Power Model
(xx=output voltage)		 Output voltage Output current Input voltage PF Location Size
Triac/Phase-cut NT 20W ZH-DV20U12-KT 12V 1.7A 120V60Hz&230V 50Hz ≥0.95 Dry/Damp/Wet 177*70*35mm
ZH-DV20U24-KT 24V 0.84A
40W ZH-DV40U12-KT 12V 3.34A
ZH-DV40U24-KT 24V 1.67A
60W ZH-DV60U12-KT 12V 5A
ZH-DV60U24-KT 24V 2.5A
75W ZH-DV75U24-KT 24V 3.13A
96W ZH-DV96U24-KT 24V 4A

Note:Any custom label/package/case is acceptable, provide OEM and ODM service.
