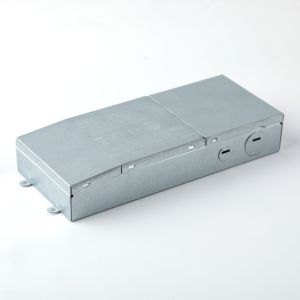

OCP Protections Triac Dimmable Driver AC 100V Output 24V 80W Led Transformer Driver

Brand Name : KSPOWER

Model Number : ZH-EAC80W24-T

Place of Origin : Guangdong, China

MOQ : 10 pieces

Price : $34.50/pieces 10-499 pieces

Payment Terms : T/T

Delivery Time : 20 days

Packaging Details : Brown box and Carton

Warranty(Year) : 5-Year

Lighting solutions service : TRIAC Dimming

Output Power : 80W

Output Type : PWM

Input Voltage : 120V & 230VAC

Output Frequency : 50/60Hz

Output Current : 3300mA

Product name : class2 Triac dimmable 24v 96w led driver

Output Voltage : 24V 80W

dimmable type : triac /phase-cut dimming

Protections : OCP, OVP, SCP, OTP

certification : CUL / UL 8750 CLASS 2 CE

PF value : >0.95

efficiency : >90%

warranty : 5 years

dimension : 200*85*37mm (L*W*H)

material : aluminium case

Contact Now

OCP Protections Triac Dimmable Driver AC 100V Output 24V 80W Led Transformer Driver

Products Description:
Custom nema 3R flicker free electronic Christmas led lights class2 24v 96w triac dimmable rgb waterproof led driver

Dimmable driver for use with magnetic low voltage or Lutron CL series wall dimmer. Also works with home dimming systems with appropriate dimming module. Driver has one input and one output. Features include constant voltage design. Encased in a high-quality NEMA 3R metal case enclosure that includes 2 knock-outs to enable easy installation, the 96W /80W dimmable LED driver is equipped with auto-reset breakers, one on the input and one on the output, protecting both the load and the driver. Electricians prefer Magnitude transformers for the integrated junction box that protects electrical connections and makes installation clean, safe and easy.
Input Voltage
120V & 230VAC
Power Factor
PF≧0 95/120VAC at 80% load
Output Voltage
24V
Rated Current
3.33A
Rated Power
80W
Ripple &Noise(max.)
250mVp-p
Dimension(L*W*H)
200*85*37mm/7.9*3.34*1.45in


Festures:
Dimmable with any standard MLV TRIAC (Leading edge) dimmer switch ● Dual protection – two manual push-to-reset circuit breakers on the primary and secondary sides ● 12V/24V PWM Output
● Single Channel & Constant Voltage mode
● Flicker-Free ● Nema 3R Enclosure – Outdoor Use ● Two bottom knockouts ● Optional 10% voltage boost to compensate for voltage drop
● Current Limiting Overload Protection ● UL/cUL 8750 CLASS2 CE Cert.
● Certified to CSA Standard
● Waterproof,for Dry, Damp, Wet Location
● 5 Years Warranty
Note:Any custom label/package/case is acceptable, provide OEM and ODM service.
OCP Protections Triac Dimmable Driver AC 100V Output 24V 80W Led Transformer Driver


Compatibility
Dimmer Model
Drivers
Dimmer Model
Drivers
Dimmer Model
Drivers
LUTRON DV-600P
No Flicker
LUTRON MSC-600M
No Flicker
LEVITON IP106-ILZ
No Flicker
LUTRON D-603PGH
No Flicker
LUTRON V-600
No Flicker
LEVITON DSE06-102ELV
No Flicker
LUTRON MAELV-600
No Flicker
LUTRON PD-6WCL
No Flicker
LEVITON DSL06-ILZ
No Flicker
LUTRON VT-600M
No Flicker
LUTRON SELV-300P
No Flicker
LEVITON DDL06-BL
No Flicker
LUTRON NT-603P
No Flicker
LUTRON MIRELV-600M
No Flicker
LEVITON DD710-BD
No Flicker
LUTRON NTLV-603P
No Flicker
LUTRON SPS-600
No Flicker
LEVITON IPL06-10
No Flicker
LUTRON N-2003P
No Flicker
LUTRON SPS-300LD-RP
No Flicker
LEVITON IP710-DL
No Flicker
LUTRON DVCL-153P
No Flicker
LEVITON 6613-PLW
No Flicker
LEVITON RDL06-10
No Flicker
LUTRON S-600P
No Flicker
LEVITON 6681
No Flicker
LEVITON TSM10-1L
No Flicker
LUTRON CTCL-153P
No Flicker
LEVITON 6633-P0G
No Flicker
LEVITON 66EV
No Flicker


Applications:
OCP Protections Triac Dimmable Driver AC 100V Output 24V 80W Led Transformer Driver

Dimming Type Series Power Model
(xx=output voltage)		 Output voltage Output current Input voltage PF Location Size
Triac/Phase-cut NT 20W ZH-DV20U12-KT 12V 1.7A 120V60Hz&230V 50Hz ≥0.95 Dry/Damp/Wet 177*70*35mm
ZH-DV20U24-KT 24V 0.84A
40W ZH-DV40U12-KT 12V 3.34A
ZH-DV40U24-KT 24V 1.67A
60W ZH-DV60U12-KT 12V 5A
ZH-DV60U24-KT 24V 2.5A
75W ZH-DV75U24-KT 24V 3.13A
96W ZH-DV96U24-KT 24V 4A
